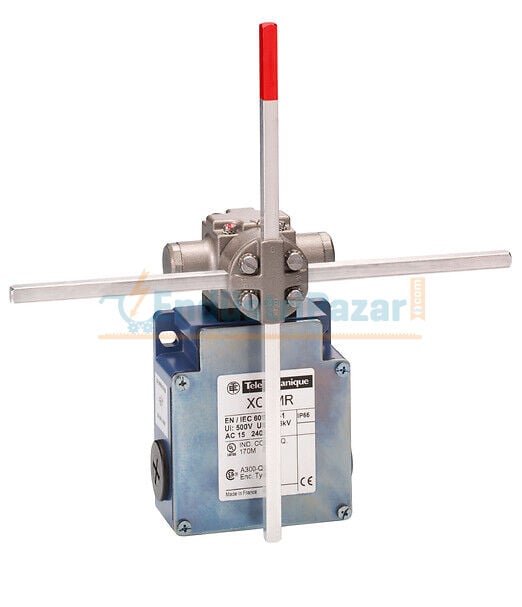

Limit Siviç XCKMR54D1H29
Stok Kodu
XCKMR54D1H29
Kategori
Fiyat
104,14 EUR + KDV
Fiyat
5.758,24 TL + KDV
Satış Fiyatı
6.909,89 TL
(KDV DAHİL)
6.909,89 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Product specific application
For hoisting and mechanical handling applications
Device short name
XCKMR
Body type
Fixed
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Stay put crossed rods lever metal square rod 6 mm, L = 200 mm
Type of approach
Lateral approach, 2 directions
Cable entry
3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts type and composition
2 x (2 NC)
Contact operation
Slow-break, staggered
Tamamlayıcı
Switch actuation
By any moving part
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts insulation form
Zb
Contact block per direction [control circuit]
1 per direction
Positive opening
With
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(11-12)NC
(21-22)NC
(21-22)NC
Ortam
Shock resistance
50 gn conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
Electrical shock protection class
Class I conforming to IEC 60536
Protective treatment
TC
Product certifications
CCC
CE
CSA
UL
CE
CSA
UL
Standards
CSA C22.2 No 14
IEC 60947-5-1
UL 508
IEC 60947-5-1
UL 508
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.5 CENTIMETER
Package 1 width
8 CENTIMETER
Package 1 length
20 CENTIMETER
Package 1 weight
0.745 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
6
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.931 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
9.2 CENTIMETER
Package 3 width
8 CENTIMETER
Package 3 length
19.5 CENTIMETER
Package 3 weight
0.746 KILOGRAM
Indivisible sale quantity
1
