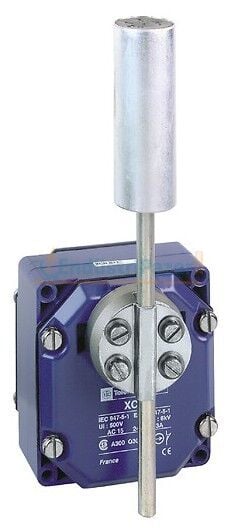

Limit Siviç XCRT115
Satış Fiyatı
8.569,36 TL
(KDV DAHİL)
8.569,36 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Product specific application
For conveyor belt shift monitoring
Device short name
XCRT
Sensor design
-
Body type
Fixed
Head type
Rotary head
Material
Metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller zinc plated steel with lever
Type of approach
Lateral approach, 2 directions
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts type and composition
2 C/O
Contact operation
Snap action
Contact block per direction [control circuit]
2 per direction
Positive opening
Without
Tamamlayıcı
Body material
Zinc alloy
Switch actuation
By conveyor belt
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300
Contacts insulation form
Za
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(11-12)NC
(13-14)NO
(13-14)NO
Ortam
Shock resistance
30 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
NF C 79-130
IEC 60204-1
IEC 60947-5-1
NF C 79-130
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9 CENTIMETER
Package 1 width
23.5 CENTIMETER
Package 1 length
13.3 CENTIMETER
Package 1 weight
1.306 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
1
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
0.455 KILOGRAM
Unit type of package 3
S03
Number of units in package 3
6
Package 3 height
30 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
8.609 KILOGRAM
Indivisible sale quantity
1
