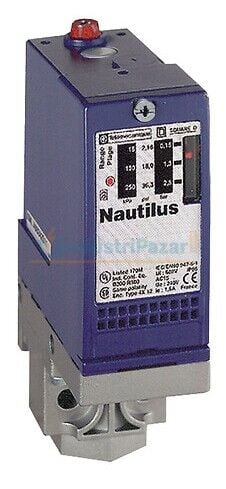

Basınç Sivici XMLA160D2S11
Satış Fiyatı
6.012,15 TL
(KDV DAHİL)
6.012,15 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical pressure sensor
Device short name
XMLA
Controlled fluid
Hydraulic oil (0-160 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Electrical connection
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm², 1 connector Pg 13
AWG gauge
AWG 20...AWG 14
Cable entry
Cable gland 9-13 mm
Contacts type and composition
1 C/O
Product specific application
Not applicable
Pressure switch type of operation
Detection of 1 single threshold
Electrical circuit type
Control circuit
Scale type
Fixed differential
Local display
With
Pressure actuator
Piston
Materials in contact with fluid
Brass
FPM, FKM
PTFE
steel
FPM, FKM
PTFE
steel
Enclosure material
Zinc alloy
Tamamlayıcı
Terminal block type
4 terminals
Operating rate
60 cyc/mn
Auxiliary contacts operation
Snap action
Contacts material
Silver contacts
Resistance across terminals
25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Setting
External
Ortam
Standards
CE
CSA C22.2 No 14
IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60947-5-1
UL 508
Product certifications
BV
CCC
CSA
LROS (Lloyds register of shipping)
UL
CCC
CSA
LROS (Lloyds register of shipping)
UL
Protective treatment
TC standard version
Operating position
Any position
Vibration resistance
4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)
Shock resistance
50 gn conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030
IP degree of protection
IP66 conforming to IEC 60529
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 CENTIMETER
Package 1 width
12.2 CENTIMETER
Package 1 length
8.6 CENTIMETER
Package 1 weight
0.757 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
13
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.047 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
8.6 CENTIMETER
Package 3 width
4 CENTIMETER
Package 3 length
12.2 CENTIMETER
Package 3 weight
0.745 KILOGRAM
Indivisible sale quantity
