İndüktif Sensör M30 15mm Algılama 2 Metre Kablolu 24...240VAC/DC XS630B1MAL2
Satış Fiyatı
2.965,27 TL
(KDV DAHİL)
2.965,27 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS6

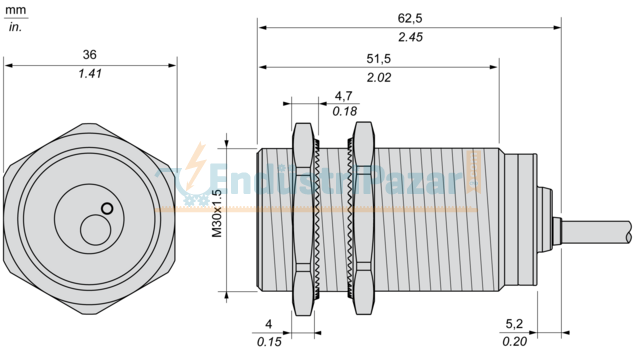

Sensor design
Cylindrical M30
Size
62 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Material
Metal
Electrical connection
Cable
[Us] rated supply voltage
24...240 V AC/DC 50/60 Hz
Output circuit type
AC/DC
Switching capacity in mA
5...200 mA DC, 5...300 mA AC
IP degree of protection
IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050
Tamamlayıcı
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Differential travel
1...15 % of Sr
Cable composition
2 x 0.34 mm²
Residual current
0.8 mA open state
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 25 Hz AC, <= 500 Hz DC
Voltage drop
<5.5 V (closed)
Delay first up
25 MILLISECOND
Delay response
0.5 MILLISECOND
Marking
CE
Delay recovery
2 MILLISECOND
Ortam
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.4 CENTIMETER
Package 1 width
15.1 CENTIMETER
Package 1 length
16.2 CENTIMETER
Package 1 weight
0.186 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
44
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
9.821 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13.2 CENTIMETER
Package 3 width
9.5 CENTIMETER
Package 3 length
4.1 CENTIMETER
Package 3 weight
0.207 KILOGRAM
Indivisible sale quantity
1
