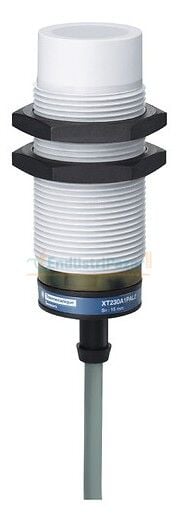

Kapasitif Sensör M30 5mm Algılama PNP NO 2 Metre Kablolu 12...24VDC XT230A1PAL2
Satış Fiyatı
2.149,14 TL
(KDV DAHİL)
2.149,14 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Sensor type
Capacitive proximity sensor
Product specific application
Detection of insulated or conductive materials
Sensor name
XT2
Sensor design
Cylindrical M30
Size
74.5 mm
Body type
Fixed
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Enclosure material
Plastic
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Output circuit type
DC
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Delay response
10 MILLISECOND
IP degree of protection
IP67 double insulation conforming to IEC 60529
Tamamlayıcı
ISO thread
M30 x 1.5
Detection face
Frontal
Differential travel
< 1...20 % Sr
Repeat accuracy
< 5 % Sr
Wire insulation material
PVC
Status LED
Output state indication: 1 LED (yellow)
Residual current
100 mA open state
Switching frequency
<= 150 Hz
Voltage drop
<2.5 V (closed)
Current consumption
< 15 mA
Delay first up
100 MILLISECOND
Delay recovery
10 MILLISECOND
Marking
CE
Setting-up

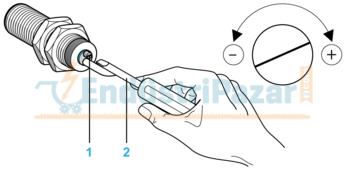

Sensitivity by potentiometer
Ortam
Standards
IEC 60947-5-2
Product certifications
cULus
Vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 CENTIMETER
Package 1 width
21 CENTIMETER
Package 1 length
15 CENTIMETER
Package 1 weight
0.16 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
30
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.006 KILOGRAM
Indivisible sale quantity
1
