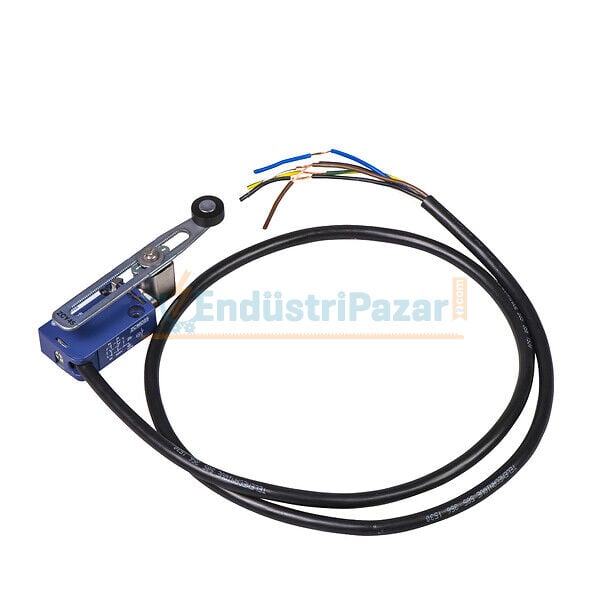

Limit Siviç XCMD2145L1
Satış Fiyatı
1.860,40 TL
(KDV DAHİL)
1.860,40 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMD
Sensor design
Miniature
Body type
Fixed
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever thermoplastic variable length
Type of approach
Lateral approach, 2 directions

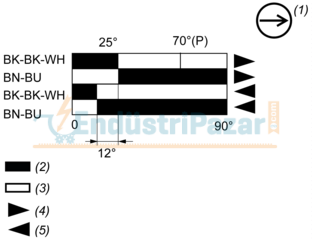

Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Tamamlayıcı

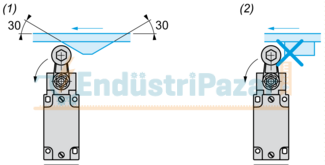

Switch actuation
By 30° cam
Electrical connection
Removable cable connector
Cable composition
5 x 0.75 mm²
Wire insulation material
PvR
Contacts insulation form
Zb
Positive opening
With
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Ortam
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529
IK degree of protection
IK06 conforming to IEC 62262
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
IEC 60204-1
IEC 60947-5-1
UL 508
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 CENTIMETER
Package 1 width
16 CENTIMETER
Package 1 length
10.5 CENTIMETER
Package 1 weight
0.218 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
50
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
11.613 KILOGRAM
Unit type of package 3
BAG
Number of units in package 3
1
Package 3 height
4 CENTIMETER
Package 3 width
16 CENTIMETER
Package 3 length
10.5 CENTIMETER
Package 3 weight
0.218 KILOGRAM
Indivisible sale quantity
1
