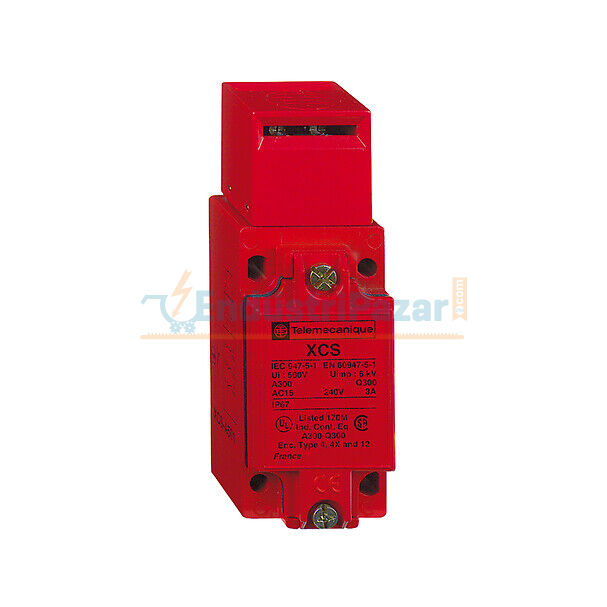

Güvenlik Sivici XCSA701
Satış Fiyatı
2.817,96 TL
(KDV DAHİL)
2.817,96 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Safety switches XCS
Product or component type
Safety switch
Component name
XCSA
Design
Industrial
Material
Metal
Head type
Key operated turret head
Contacts type and composition
2 NC + 1 NO
Contact operation
Slow-break, break before make
Cable entry
1 entry tapped for Pg 13.5
Electrical connection
Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end
Locking options description
Without locking of actuator
Local signalling
Without
Tamamlayıcı
Positive opening
With NC contact
Actuator force for extraction
20 NEWTON
Operating rate
10 cyc/mn for maximum durability
Safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Safety reliability data
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Body material
Zamak
Head material
Zamak
Ortam
Standards
CSA C22.2 No 14
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
ISO 12100
UL 508
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
ISO 12100
UL 508
Product certifications
CSA
UL
UL
Protective treatment
TC
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance
10 gn for 11 ms conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 61140
IP degree of protection
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7 CENTIMETER
Package 1 width
12.7 CENTIMETER
Package 1 length
4.3 CENTIMETER
Package 1 weight
0.5 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.231 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
10
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
5.225 KILOGRAM
Indivisible sale quantity
1
