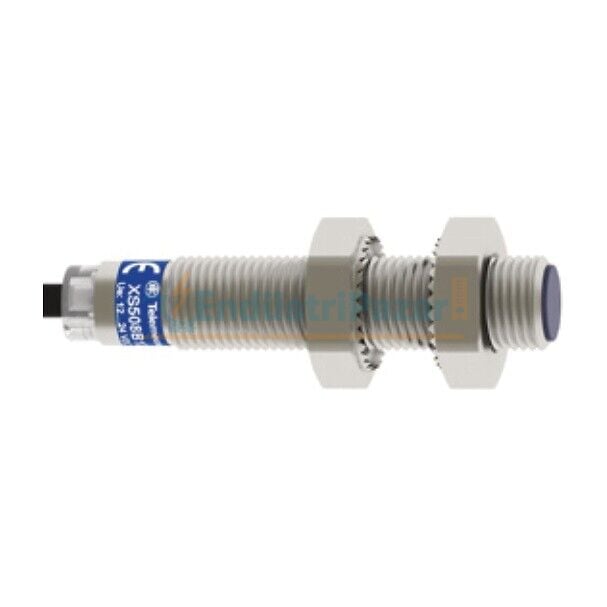

İndüktif Sensör XS608B1PAL2
Satış Fiyatı
1.870,16 TL
(KDV DAHİL)
1.870,16 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS6
Sensor design
Cylindrical M8
Size
51 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Stainless steel
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Output circuit type
DC
Switching capacity in mA
<= 200 mA DC with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Tamamlayıcı
Enclosure material
Stainless steel 303
Detection face
Frontal
Thread type
M8 x 1
Front material
PPS
Sensing range
> 0...2.5 mm
Differential travel
1...15 % of Sr
Cable composition
3 x 0.11 mm²
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 2500 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
10 MILLISECOND
Delay response
0.2 MILLISECOND
Marking
CE
Delay recovery
0.2 MILLISECOND
Ortam
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Teklif Sürdürülebilirliği
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.1 CENTIMETER
Package 1 width
11.1 CENTIMETER
Package 1 length
11.3 CENTIMETER
Package 1 weight
0.04 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
44
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.596 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13 CENTIMETER
Package 3 width
4.3 CENTIMETER
Package 3 length
9.5 CENTIMETER
Package 3 weight
0.042 KILOGRAM
Indivisible sale quantity
1
