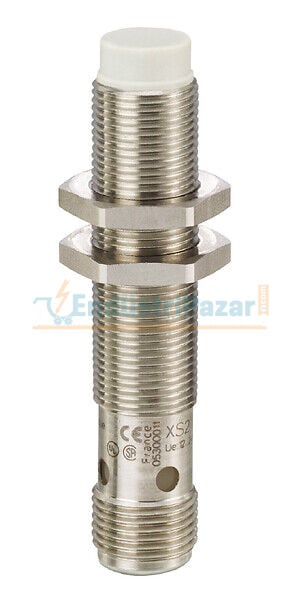

İndüktif Sensör M12 4mm Algılama PNP M12 Konnektörlü XS612B1PBM12
Satış Fiyatı
1.347,61 TL
(KDV DAHİL)
1.347,61 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS6
Device application
Mobile equipment
Sensor design
Cylindrical M12
Size
62 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NC
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Metal
Electrical connection
Male connector M12, 4 pins
[Us] rated supply voltage
12...48 V DC with reverse polarity protection
Output circuit type
DC
Switching capacity in mA
<= 200 mA DC with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Tamamlayıcı
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M12 x 1
Front material
PPS
Sensing range
> 2.5...4 mm
Differential travel
1...15 % of Sr
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 2500 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
10 MILLISECOND
Delay response
0.2 MILLISECOND
Marking
CE
Delay recovery
0.2 MILLISECOND
Ortam
Product certifications
CSA
E2
UL
E2
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.7 CENTIMETER
Package 1 width
6.6 CENTIMETER
Package 1 length
9.6 CENTIMETER
Package 1 weight
0.029 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
44
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.215 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
4.2 CENTIMETER
Package 3 width
9.6 CENTIMETER
Package 3 length
6.6 CENTIMETER
Package 3 weight
0.04 KILOGRAM
Indivisible sale quantity
1
