İndüktif Sensör XS8C4A1MPG13
Satış Fiyatı
3.064,19 TL
(KDV DAHİL)
3.064,19 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Not applicable
Sensor name
XS8

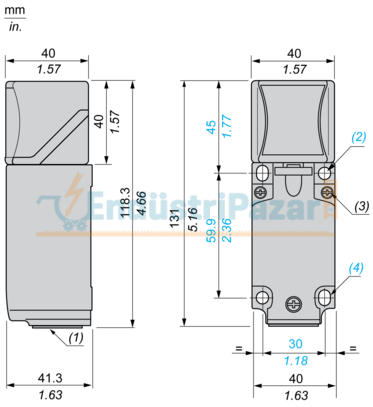

Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Screw-clamp terminals, 4 x 1.5 mm²
[Us] rated supply voltage
24...240 V AC 50/60 Hz, 24...240 V DC
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Switching capacity in mA
5...200 mA DC, 5...300 mA AC
Tamamlayıcı
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
AC/DC
Detection face
5 positions turret head
Front material
PBT
Repeat accuracy
<= 3% of Sr
Differential travel
3...15% of Sr
Sensing range
> 15...40 mm
Status LED
Supply on: 1 LED (green), output state: 1 LED (yellow)
Switching frequency
<= 25 Hz AC, <= 50 Hz DC
Residual current
1.5 mA open state 120 V, 0.6 mA open state 24 V
Voltage drop
<5.5 V (closed)
Delay first up
7.5 MILLISECOND
Marking
CE
Delay response
1.2 MILLISECOND
Delay recovery
1.8 MILLISECOND
Ortam
Product certifications
CCC
CSA
UL
CSA
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Teklif Sürdürülebilirliği
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
4.4 CENTIMETER
Package 1 weight
0.245 KILOGRAM
Package 1 length
14 CENTIMETER
Unit type of package 2
S02
Number of units in package 2
28
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
7.287 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
4.5 CENTIMETER
Package 3 width
4.5 CENTIMETER
Package 3 length
14.5 CENTIMETER
Indivisible sale quantity
1
