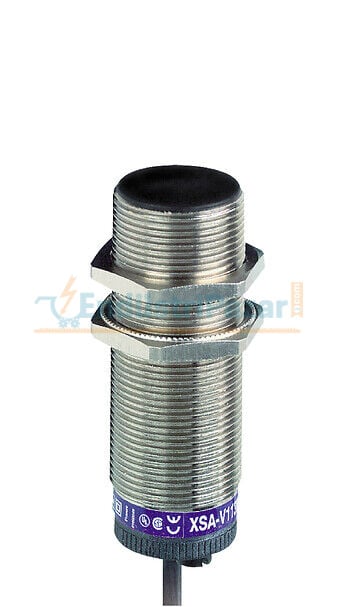

İndüktif Sensör XSAV11801
Satış Fiyatı
6.050,51 TL
(KDV DAHİL)
6.050,51 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Product or component type
Sensor
Sensor type
Inductive proximity sensor
Sensor name
XSA
Device application
Rotation monitoring
Sensor design
Cylindrical M30
Size
81 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NC
Detector flush mounting acceptance
Flush mountable
Material
Metal
Electrical connection
Cable
[Us] rated supply voltage
24...210 V DC, 24...240 V AC 50/60 Hz
Output circuit type
AC/DC
Switching capacity in mA
5...200 mA DC, 5...350 mA AC
IP degree of protection
IP67 conforming to IEC 60529
Tamamlayıcı
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Differential travel
3...15% of Fr
Repeat accuracy
<= 3% of Sr
Cable composition
2 x 0.34 mm²
Residual current
1.5 mA open state
Status LED
Output state: 1 LED (red)
Wire insulation material
PVC
Switching frequency
<= 100 Hz
Voltage drop
<5.7 V (closed)
Marking
CE
Ortam
Product certifications
CCC
CSA
UL
CSA
UL
Teklif Sürdürülebilirliği
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
13.2 CENTIMETER
Package 1 weight
0.226 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.23 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13.2 CENTIMETER
Package 3 width
4.1 CENTIMETER
Package 3 length
9.5 CENTIMETER
Package 3 weight
0.228 KILOGRAM
Indivisible sale quantity
1
