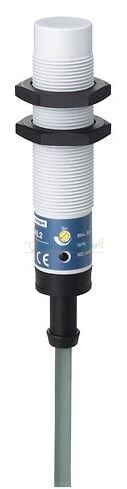

Kapasitif Sensör M18 8mm Algılama PNP NO 2 Metre Kablolu 12...24VDC XT218A1PAL2
Satış Fiyatı
1.805,68 TL
(KDV DAHİL)
1.805,68 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Ana
Sensor type
Capacitive proximity sensor
Product specific application
Detection of insulated or conductive materials
Sensor name
XT2
Sensor design
Cylindrical M18
Size
78 mm
Body type
Fixed
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Enclosure material
Plastic
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Output circuit type
DC
Electrical connection
-
[Us] rated supply voltage
-
Delay response
15 MILLISECOND
IP degree of protection
IP67 double insulation conforming to IEC 60529
Tamamlayıcı
ISO thread
M18 x 1
Detection face
Frontal
Differential travel
< 1...20 % Sr
Repeat accuracy
< 5 % Sr
Wire insulation material
PVC
Status LED
Output state indication: 1 LED (yellow)
Residual current
100 mA open state
Switching frequency
<= 200 Hz
Voltage drop
<2.5 V (closed)
Current consumption
-
Delay first up
100 MILLISECOND
Delay recovery
15 MILLISECOND
Marking
CE
Setting-up
Sensitivity by potentiometer
Ortam
Standards
IEC 60947-5-2
Product certifications
cULus
Vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Teklif Sürdürülebilirliği
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.03 CENTIMETER
Package 1 width
12.19 CENTIMETER
Package 1 length
15.49 CENTIMETER
Package 1 weight
0.12 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.056 KILOGRAM
Indivisible sale quantity
1
