0 Puan - 0 Yorum

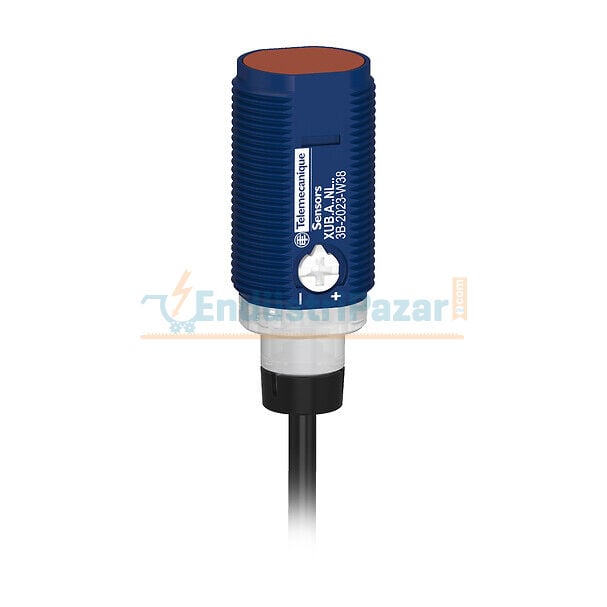

Fotoelektrik Sensör 1 Metre Algılama 2 Metre Kablolu PNP NO/NC XUB5APXNL2
Satış Fiyatı
1.942,48 TL
(KDV DAHİL)
1.942,48 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUB
Series name
General purpose single mode
Enclosure material
PC/PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Material
Plastic
Electrical connection
Cable
Wiring technique
4 wires
Detection system
Diffuse
Emission
Red LED diffuse
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Line of sight type
Axial
Supply circuit type
DC
Switching frequency
1000 Hz
Discrete output type
PNP
Delay response
0.5 MILLISECOND
Tamamlayıcı
Setting-up
Sensitivity by potentiometer
Current consumption
< 20 mA no load
Output type
Discrete
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Status LED
1 LED (green) for supply on/stability, 1 LED (orange) for output state
Sensing range
0.01…1 m
Maximum voltage drop
<2 V (closed state)no-load
Delay first up
100 MILLISECOND
Delay recovery
0.5 MILLISECOND
Ortam
Shock resistance
30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6
Teklif Sürdürülebilirliği
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.8 CENTIMETER
Package 1 width
1.6 CENTIMETER
Package 1 length
4.4 CENTIMETER
Package 1 weight
0.095 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
36
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.42 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
576
Package 3 height
70 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
68.26 KILOGRAM
Indivisible sale quantity
1
