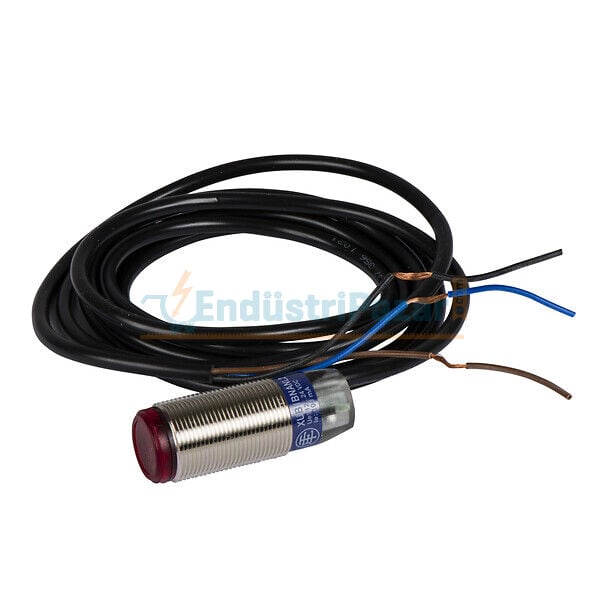

Fotoelektrik Sensör XUB5BNANL2
Satış Fiyatı
3.336,44 TL
(KDV DAHİL)
3.336,44 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUB
Series name
General purpose single mode
Product specific application
Not applicable
Enclosure material
Nickel plated brass
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Material
Metal
Electrical connection
Cable
Wiring technique
3-wire
Detection system
Diffuse
Emission
Infrared diffuse
Discrete output function
1 NO
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Line of sight type
Axial
Supply circuit type
DC
Switching frequency
500 Hz
Discrete output type
NPN
Delay response
1 MILLISECOND
Tamamlayıcı
Setting-up
Sensitivity adjustment
Current consumption
35 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Add on output
Without
Status LED
1 LED (yellow) for output state
Sensing range
> 0.3...1 m
Maximum voltage drop
<1.5 V (closed state)
Delay first up
15 MILLISECOND
Delay recovery
1 MILLISECOND
Ortam
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 double insulation conforming to IEC 60529, IP65 double insulation conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Teklif Sürdürülebilirliği
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
9.6 CENTIMETER
Package 1 length
13.2 CENTIMETER
Package 1 weight
0.121 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
11
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.556 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
22
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
3.117 KILOGRAM
Indivisible sale quantity
1
