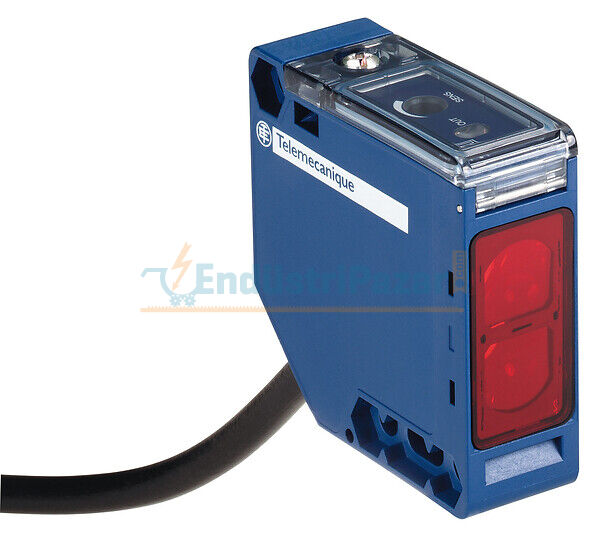

Fotoelektrik Sensör 7 Metre Kablolu 24...240VAC/DC 2 Metre Kablolu NO/NC XUK1ARCNL2
Satış Fiyatı
3.657,81 TL
(KDV DAHİL)
3.657,81 TL den
başlayan taksitlerle!
başlayan taksitlerle!
Veri sayfası
Ana
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUK
Series name
General purpose single mode
Product specific application
Not applicable
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Material
Plastic
Cable composition
5 x 0.34 mm²
Electrical connection
Cable
Wiring technique
5-wire
Detection system
Reflex
Emission
Infrared reflex
Discrete output function
1 C/O
[Us] rated supply voltage
24...240 V AC/DC
Type of output signal
Discrete
Supply circuit type
AC/DC
Switching frequency
20 Hz
Delay response
25 MILLISECOND
Tamamlayıcı
Setting-up
Without sensitivity adjustment
Current consumption
<= 35 mA no-load
Output type
Relay
Switching capacity in mA
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
Lens material
PMMA
Status LED
1 LED (yellow) for output state, 1 LED (green) for supply
Sensing range
> 5...15 m
Delay first up
60 MILLISECOND
Delay recovery
25 MILLISECOND
Maximum power consumption in W
-
Ortam
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 double insulation conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Teklif Sürdürülebilirliği
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Paket Birimleri
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
13.2 CENTIMETER
Package 1 length
9.6 CENTIMETER
Package 1 weight
0.185 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
30 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.6465 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
4.2 CENTIMETER
Package 3 width
9.6 CENTIMETER
Package 3 length
13.2 CENTIMETER
Package 3 weight
0.185 KILOGRAM
Indivisible sale quantity
1
